VECTOR PLASMA CUTTER PARIS 1000 PROFI PLASMA CUTTER 100A IGBT | HF PILOT ARC | 40 MM 400V

plasmaschneider-plasma-cut-plasmacut-100A-40mm-vector-welding

plasmaschneider-plasma-cut-plasmacut-400V-40mm-vector-welding

Plasma cutter 100A, IGBT, high frequency ignition (HF) cutting 30MM | Paris 1000

SKU: C1054SIWM
GTIN: 4251210406250
Category: Plasma cutter
Manufacturers: VECTOR WELDING

Plasma cutter 100A, IGBT, high frequency ignition (HF) cutting 30MM | Paris 1000

3 pcs. sold in last 8 hours

VECTOR WELDING Paris 1000 Plasma Cutter

Plasma Cutter 20–100 A

High-frequency ignition, contactless

Steel cutting thickness up to 30 mm

Aluminum cutting capacity up to 25 mm

899,00 €

incl. 19% VAT , (Standard)

Old price: 999,00 €

Manufacturers recommended retail price: 1.199,00 €

(Save 25.02%, i.e. 300,00 €)

Available immediately
Delivery time: 2 - 3 Workdays in Germany

pcs.

Item Number: C1054SIWM

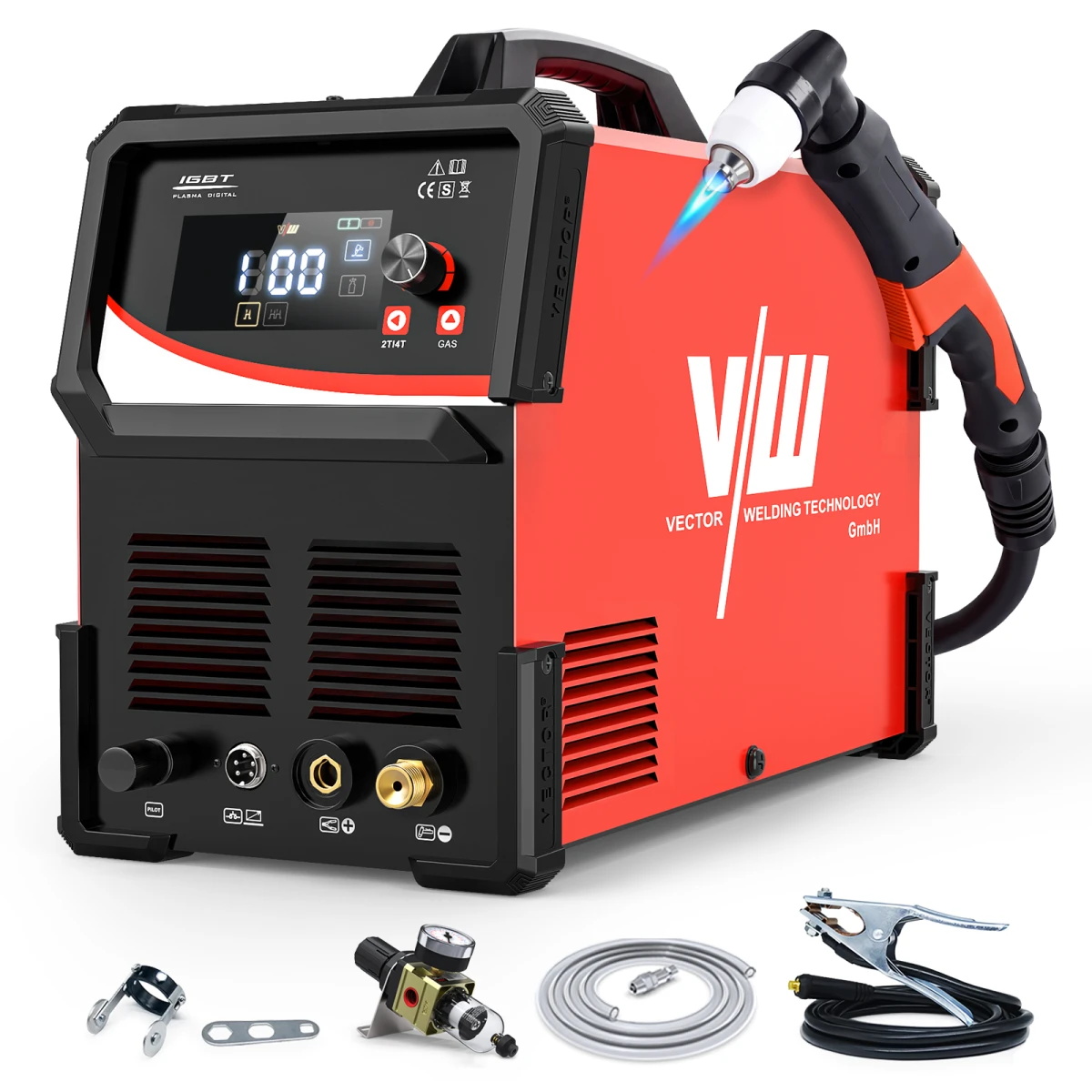

PARIS 1000 PLASMA CUTTER

The Paris 1000 from Vector Welding is a plasma cutter with contactless high-frequency ignition. The unit is a powerful and reliable tool for installation, repair, maintenance, and DIY projects.

The cutting current is continuously adjustable from 20 to 100 A. The Paris 1000 achieves a maximum cutting thickness of 30 mm and delivers high-quality cuts up to 20 mm on average.

Paris 1000 FEATURES & BENEFITS:

Plasma cutter: An electric current generates a plasma jet that melts the material, which is then blown away by compressed air—resulting in a precise cut. This process can be used to cut all conductive metals (e.g., steel, stainless steel, aluminum, copper, etc.)
High-frequency, contactless ignition: superior ignition performance without requiring contact with the workpiece
Steel cutting thickness: maximum 30 mm (hand-guided), quality cut averaging up to 20 mm (hand-guided).
Aluminum cutting thickness: maximum 25 mm (hand-guided), high-quality cut averaging up to 15 mm (hand-guided)
Cutting current continuously adjustable from20–100 A
ModernIGBT ( Insulated Gate Bipolar Transistor) enables fast and thus low-loss switching of electrical currents
Overheating protection

Paris 1000 FEATURES:

Paris 1000 TECHNICAL DETAILS:

Cutting current adjustment range	20–100 A
Duty Cycle (DC) of Plasma Cutter at 40°C	100 A at 108 V, 60%
Mains voltage	400 V / 3-phase
Mains frequency	50–60 Hz
Protection class	IP23S
Dimensions in mm (L x W x H)	520 x 225 x 380
Weight in kg	19
Standards	EN 60974-1 / EC 60974-1
Maximum cutting capacity (hand-held)	30 mm
Quality cutting capacity (hand-held)	20 mm

Shipping weight:	24,90 kg
Dimensions ( Length × Width × Height ):	69,50 × 31,50 × 48,00 cm

Paris 1000 TECHNICAL SPECIFICATIONS:

Cutting Current (CUT) Range	20–100 A
Cutting current at 40°C, 10 min	100 A at 120 V, 60% 77.5 A at 111 V, 100%
Line voltage	400 V ± 15%
Mains frequency	50–60 Hz
Effective input current	17 A
Input current (max.)	21.9 A
Required generator rating	22.8 kVA
Protection class	IP23
Open-circuit voltage	320 V DC
Quality cuts	20 mm
Dimensions in mm (L x W x H)	615 x 225 x 385
Weight in kg	19.5
Standards	EN 60974-1 / IEC 60974-1
Cooling	Fan cooling
