VECTOR WELDING MIG 200 – Four Welding Processes, Endless Possibilities
Repair, join, and bring your own metal projects to life: The MIG 200 combines MIG/MAG welding, gasless flux-cored welding, lift TIG, and MMA electrode welding in one compact inverter unit. With a 230-V connection, digital display, and extensive accessories, this kit offers versatile applications for workshops, repairs, and DIY projects.
The Benefits at a Glance
-
Four welding processes: MIG/MAG, FCAW (flux-cored wire), lift TIG, and MMA in a single unit.
-
Up to 200 A welding current: 30–200 A for MIG, 10–200 A for lift TIG, and 30–170 A for MMA electrode welding.
-
With or without shielding gas: suitable for the selected process and welding filler material.
-
Intuitive operation: Digital display showing the set parameters.
-

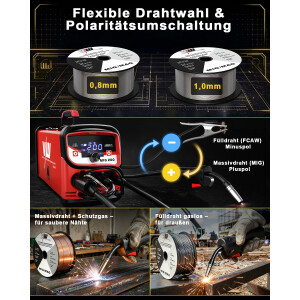

Flexible wire selection: for 0.8 and 1.0 mm welding wire as well as 0.5 or 1 kg spools.
-
Set with welding helmet and accessories: includes a MIG/MAG torch, electrode holder, ground clamp, brush, and a total of 1 kg of welding wire.
The right process for your project
MIG/MAG welding with shielding gas:
For welding with welding wire and an external shielding gas supply. Depending on the application, an argon/CO₂ gas mixture or pure CO₂ is used.
FCAW flux-cored wire welding without a shielding gas cylinder:
With self-shielded, no-gas-required flux-cored wire, you can work without an external shielding gas supply. A matching 0.5-kg spool of flux-cored wire with a 1.0 mm diameter is already included in the set.
Lift TIG welding:
The Lift TIG function expands your options with another welding process. The welding current can be adjusted from 10 to 200 A. Pure argon is supplied externally.
MMA (stick) welding:
A current range of 30 to 170 A is available for welding with stick electrodes. An external shielding gas supply is not required. Hot Start, Anti-Stick, and Arc Force round out the features.
For various materials and material thicknesses
Depending on the welding process and filler material used, the MIG 200 is suitable for carbon steel, low-carbon steel, stainless steel, and cast iron. The recommended working range is for material thicknesses of 1.2 to 6 mm. Depending on the material, process, and settings, applications ranging from approximately 0.8 mm to a maximum of 8 mm are possible.
Compact design, clear display

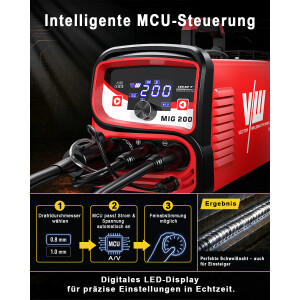

The digital display clearly shows the set parameters and makes it easy to adjust the machine to the specific welding task. IGBT inverter technology, fan cooling, and a carrying handle round out the features of this 8-kg unit. With dimensions of 375 × 158 × 200 mm, the MIG 200 remains compact.
Technical Specifications
| Model / SKU |
MIG200-Helmet |
| Welding Processes |
MIG/MAG, FCAW, Lift-TIG, MMA |
| Mains Voltage |
1 × 230 V ±15% |
| Mains frequency |
50/60 Hz |
| MIG welding current |
30–200 A |
| Lift-TIG welding current |
10–200 A |
| Welding current, MMA / ARC |
30–170 A |
| Wire diameter |
0.8 / 1.0 mm |
| Wire spools |
0.5 / 1 kg |

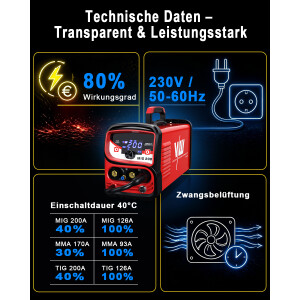

| MIG duty cycle at 40 °C |
200 A at 40% / 126 A at 100% |
| Duty cycle for TIG at 40 °C |
200 A at 40% / 126 A at 100% |
| Duty cycle for MMA / ARC at 40 °C |
170 A at 30% / 93 A at 100% |
| Cooling |
Fan-cooled |

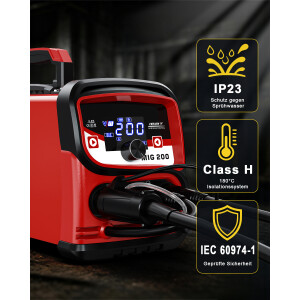

| Protection rating / Insulation class |
IP23 / H |
| Unit Dimensions (L × W × H) |
375 × 158 × 200 mm |
| Unit weight |
8 kg |

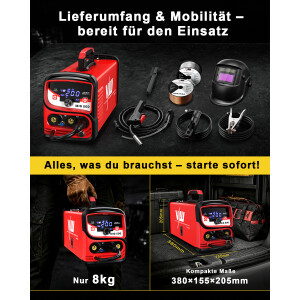

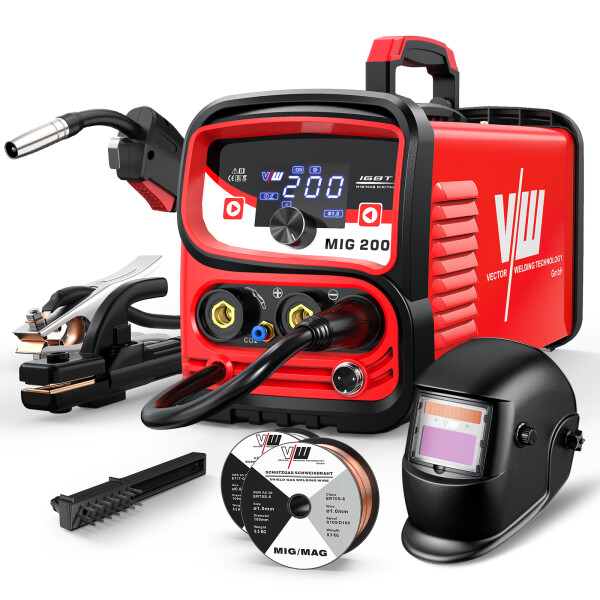

What’s Included
- 1 × VECTOR WELDING MIG 200 welding machine
- 1 × welding helmet
- 1 × AK-14 MIG/MAG torch with 1.5 m hose set
- 1 × electrode holder
- 1 × Ground clamp
- 1 × brush
- 1 × 0.5 kg No-Gas flux-cored wire, Ø 1.0 mm
- 1 × 0.5 kg steel welding wire, Ø 1.0 mm
Note on equipment: The TIG torch and shielding gas equipment are not included in the listed scope of delivery. The required accessories depend on the selected welding process.
