AC/DC TIG Welder & Plasma Cutter 200A, Pulse, MMA, E-Hand, Inverter | NewYork 2500

SKU: K1055VW
GTIN: 4251210407080
Category: TIG-CUT combi machine
Manufacturers: VECTOR WELDING

AC/DC TIG Welder & Plasma Cutter 200A, Pulse, MMA, E-Hand, Inverter | NewYork 2500

5 sold in last 10 hours

VECTOR WELDING welder & Plasma cutter New York 2500

AC/DC TIG 10-200A

PULSE Funktion

HF-ignition

MMA/Electrode 10-170A

Plasma Cutter 50A

IGBT

Job storage

549,00 €

incl. 19% VAT , (Standard)

Old price: 699,00 €

Manufacturers recommended retail price: 1.099,00 €

(Save 50.05%, i.e. 550,00 €)

Low stock level
Delivery time: 2 - 3 Workdays in Germany

Item number: K1055VW

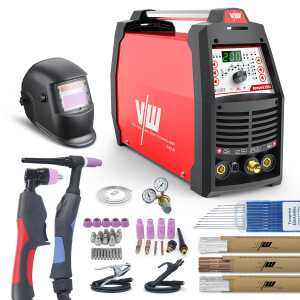

AC/DC TIG WELDER + PLASMA CUTTER New York 2500

The NEW YORK 2500 from Vector Welding is a combination unit for welding and Plasma cutting.

Due to the adjustable AC/DC (alternating current / direct current) mode, it can be used for all weldable metals, including aluminium.With 10-200A in TIG mode, 10-170A in MMA/electrode mode and Plasma cutting with 10-50A the unit is well suited for installation, repair, maintenance and DIY.

The NEW YORK 2500 offers everything you need for metal welding or cutting.

NEW YORK FEATURES & ADVANTAGES:

3 in1 combi device: AC/DC TIG, MMA/STICK, Plasma cutting
AC/DC TIG welding: Processing of all weldable metals, including aluminum
The adjustable AC output frequency allows the operator to focus the arc, minimizing the heat affected zone.
Advanced AC balance control helps maintain a sharp tungsten needle to precisely control the arc in the weld joint.
Pulse function: during pulse welding, the welding current alternates between output and peak current at the desired frequency. The longer the intervals, the less energy and heat is supplied to the workpiece
HF Ignition (TIG)
2 T/4 T
MMA/STICK/E-HAND: coated electrodes are used - in this process the electrodes are arc carrier and filler metal in one.
Hot Start: each time the welding machine is restarted, overcurrent is provided to support the ignition of the arc.
Arc-Force: melted material is transferred more easily to the workpiece. Prevents the arc from extinguishing if this material causes contact between the electrode and molten pool.
Anti-Stick: automatically switches off the welding generator if the electrode sticks to the workpiece and must be removed by hand without damaging the electrode clamp.
Plasma cutter: CUT function using a plasma beam generated by electricity. This melts the material and removes it with compressed air - a precise cut is produced. With this method all conductive metals can be cut (e.g. steel, stainless steel, aluminium, copper, etc.)
Cutting thickness: maximum 16mm (hand-guided), quality cut 10mm (hand-guided) modern IGBT (Insulated Gate Bipolar Transistor) allows fast and therefore low-loss switching of electrical currents
Modern IGBT (Insulated Gate Bipolar Transistor) enables fast and therefore low-loss switching of electrical currents
Job memory: the O251 has 9 memory locations

NEW YORK 2500 FEATURES:

NEW YORK 2500 TECHNICAL DETAILS:

Adjustment range welding current (TIG)	10 -200 A
Adjustment range welding current (MMA/Elektrode)	10 -170 A
Setting range welding current (CUT mode)	20 - 50 A
Duty cycle (ED) TIG 40°C	200 A at 18 V 40%
Duty cycle (ED) MMA/STICK 40°C	170 A at 26.8 V 25%
Duty cycle (ED) Plasma cutter 40°C	50 A at 100 V 40%
Input Voltage	1 x 230 Volt
Power frequency	50 - 60 Hz
Protection class	IP23
Dimensions in mm (L x W x H)	380 x 160 x 360
Weight (kg)	11,5
Standards	EN60974-1 / EC60974-1
Maximum cutting capacity (manually guided)	13 mm
Quality cutting capacity (hand guided)	8 mm

NEW YORK 2500 SYSTEM CONTROL:

1. Display	5. On/Off	9. Selection key
2. PULSE function	6. Overheating indicator	10. Hotstart/Arc Force/Anti Stick
3. 2 T/4 T	7. JOB and SAVE	11. Parameter settings
4. Mode (MMA/TIG/CUT)	8. AC/DC Mode

1. Gasvorlauf	5. Sekundärstrom	9. Final Current
2. Starting current	6. Impulsweite (%)	10. Gas after-run
3. Current rise	7. Impulsfrequenz (Hz)	11. AC Frequency
4. Welding current (primary)	8. Current reduction	12. AC Balance

Shipping weight:	16,30 kg
Dimensions ( Length × Width × Height ):	51,50 × 30,00 × 39,00 cm

NewYork 2500 TECHNICAL DETAILS:

Setting rangeWelding current (TIG)	10 -200 A
Welding current setting range (MMA/electrode)	10 -170 A
Setting range plasma cutting (CUT)	20 - 50 A
Duty cycle (ED) TIG, 40°C, 10 min	200 A at 18V 40%
Duty cycle (ED) MMA,40°C, 10 min	170 A at 26.8V 25%
Duty cycle (ED) CUT, 40°C, 10 min	50A at 100V 40%
Mains voltage	230V +/- 15%
Mains frequency	50 - 60 Hz
Effective input current	15,4A
Input current (max.)	30,9A
Required design of the single-phase generator	10 kVA
Protection class	IP23
Open circuit voltage (TIG/MMA)	60V DC
Open circuit voltage (plasma)	250V DC
Dimensions in mm (L x W x H)	360 x 160 x 380
Weight in kg	11,5
Standards	EN 60974-1 / IEC 60974-1
Cooling	Fan cooled
Welding machine type	Inverter power source
