VECTOR WELDING plasma cutter Paris 700

plasma cutter 20-70A

high frequency ignition, contactless

cutting thickness steel up to 24mm

cutting thickness aluminium up to 17mm

>/i>COMPLETE SET: plasma cutter, welding helmet, welding gloves, accessories

#custom.viewsdetails#

PLASMA CUTTER SET PARIS 700

The Paris 700 from VECTOR Welding is a Plasma Cutter with contactless high-frequency ignition . The device is a strong and reliable partner in the fields of installation, repair, maintenance and do-it-yourself. The Cutting current is continuously adjustable from 20-70A. The Paris 700 achieves a maximum cutting thickness of 24 mm and full equipment consisting of Plasma Cutter Paris 700, welding helmet, welding gloves, as well as an extensive Accessory and wear parts set (see scope of delivery).

PARIS 700 PROPERTIES & BENEFITS:

  • Plasma Cutter: A plasma beam generated by electricity melts the material and discharges it with compressed air – a precise cut is created. With this process, all conductive metals can be cut (e.g. steel, stainless steel, aluminium, copper, etc.)
  • contactless high frequency ignition: first class ignition behaviour without contact with the workpiece must exist
  • Cutting steel: maximum 24mm (hand quality cut on average up to 15mm (guided by hand).
  • Aluminium: max. 17mm (hand quality cut on average up to 11mm (guided by hand). >>/li>
  • cutting current infinitely variable, e.g. from 20-70A
  • modern IGBT (Insulated Gate Bipolar Transistor) enables fast and therefore low-loss switching electrical current
  • Environmental heat protection

Paris 700 TECHNISCHE DETAILS:

Einstellbereich Schneidstrom
20-70A
Einschaltdauer (ED) Plasmaschneider 40°C
70A bei 108V 60%
Netzspannung
400V/3 Phasen
Netzfrequenz
50 - 60 Hz
Schutzart
IP23S
Maße in mm (L x B x H)
380 x 160 x 365
Gewicht in kg
12
Normen
EN60974-1 / EC60974-1
Maximale-Schnittkapazität (Hand geführt)
24 mm
Qualitäts-Schnittkapazität (Hand geführt)
15 mm

Paris 700 SET Scope of delivery:

plasma cutter Paris 700
plasma torch: AG-60 (9 mandrel, 2 pole), 4m
Automatic welding helmet
welding gloves
5x AG 60 ceramic caps with spacer
10x AG 60 nozzles
10x AG 60 electrodes

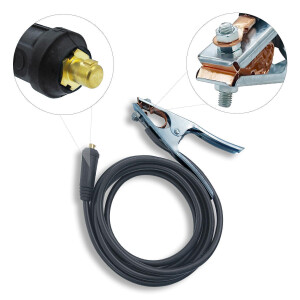

ground clamp with ground cable (9 mandrel), 3m
water separator
gas connection hose
